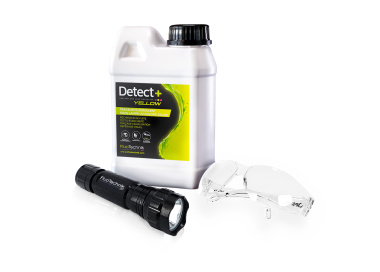

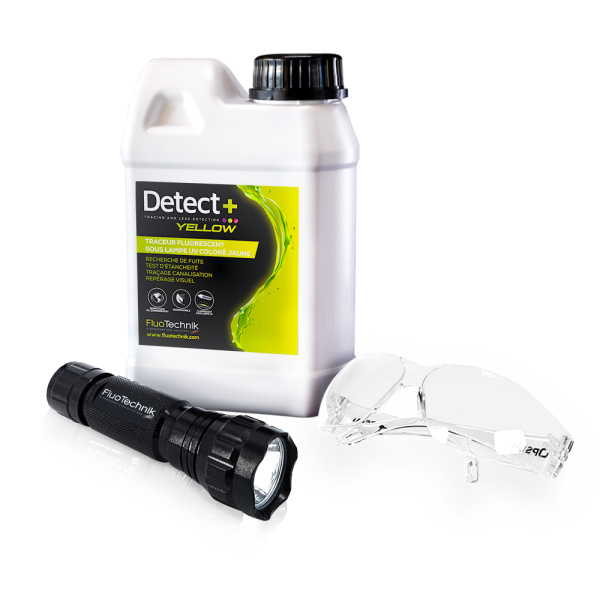

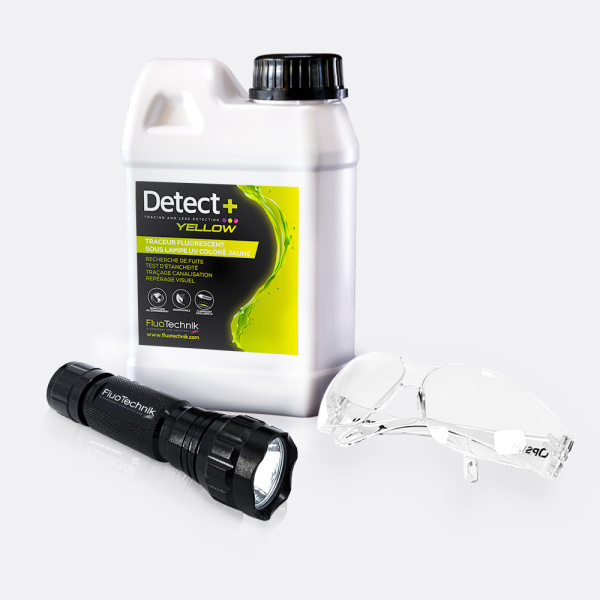

DETECT+ Yellow Kit and UV Lamp - TORCH - High Precision - 365nm - 5w

Réf. K.D+.Y/HP
(5)
81.70 €
HT
69,45€
HT
83,33€
TTC


Fluotechnik

Fluotechnik

Discover the complete DETECT + Yellow kit, designed for craftsmen and individuals, perfectly suited for plumbing and pipeline jobs, property diagnosticians, leak detection specialists, pool technicians, building experts, hydrogeologists, and anyone wishing to conduct their own investigations. Comprising only the essentials, this kit combines DETECT + tracing dyes and a UV lamp, providing you with everything you need for simple, quick, and effective leak detection.

Add to cart
Download the catalog
TECHNICAL GUIDE
APPLICATIONS AND TIPS

Discover the complete DETECT + Yellow kit, designed for craftsmen and individuals. Comprising only the essentials, this kit combines DETECT + tracing dyes and a UV lamp, providing you with everything you need for simple, quick, and effective leak detection.

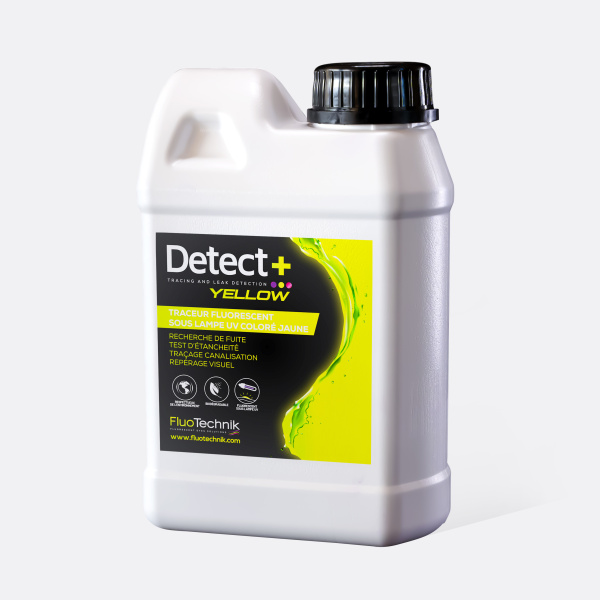

Liquid Leak Detection and Tracing Dye Yellow - DETECT+ YELLOW






The DETECT+ Yellow range is perfectly suited for plumbing and drainage professionals, property inspectors, leak detection specialists, pool builders, building experts, hydrogeologists, and any individual wishing to conduct their own research.

RESPECTUEUX-DE-L’ENVIRONNEMENT.pngDOSAGE-1-ML-LITRE-_1.pngFLUORESCENTS--SOUS--LAMPE--UV-TER.pngNETTOYAGE-FACILE.pngPR%C3%8AT-%C3%80-L%E2%80%99EMPLOI.png


APPLICATIONS
The DETECT + range of tracing dyes has been specially designed for:
• Waterproofing tests for roofs, terraces, balconies, floor coverings, etc.
• Waterproofing and infiltration control in buildings
• Flow tests for wastewater, rainwater, and industrial water
• Simulation of agricultural spreading
• Hydraulic connection research between natural environment and building
• Leak detection on civil engineering structures: dams, dikes, water reservoirs
• Water infiltration detection in soil, walls, and ceilings

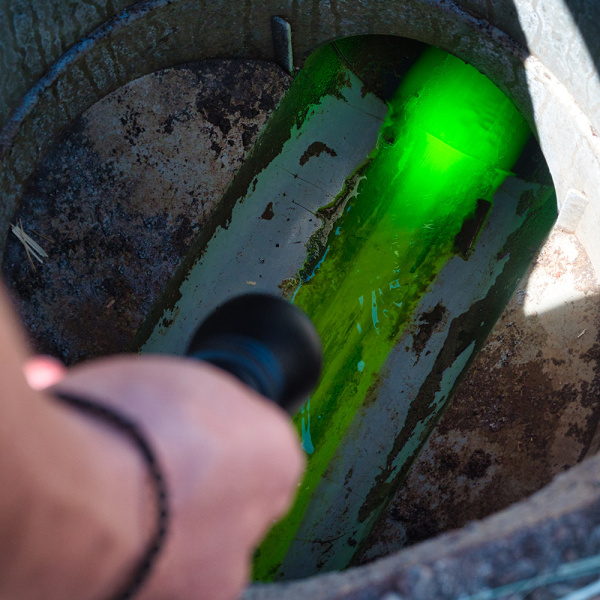

• Visual marking and connection tests of buried pipes
• Simulation of chemical product dispersion
• Leak detection on underfloor heating, glycol cooling circuits
• Leak detection on storage tanks


KEY POINTS
• Bright colors, visually detectable for several hours
• Fluorescent under 365nm UV lamp from Fluotechnik
• Very high diagnostic precision thanks to its high fluorescence yield
• Excellent diagnostic proof tool for infiltration
• Very good solubility, easy dispersion
• Cleaning with BRILLANT REMOVER
• Non-polluting, non-toxic, environmentally safe
(follow usage conditions and prescribed dosage)

DOSAGE
• 1ml/L to 5ml/L

Fluotechnik

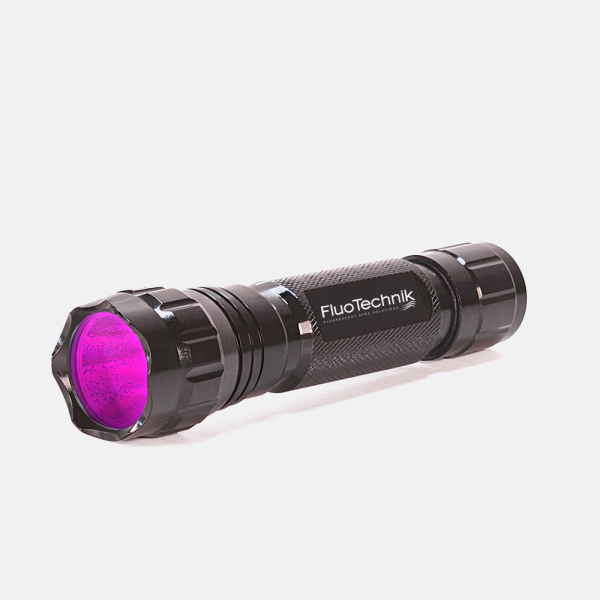

UV Lamp Kit - TORCH - High Precision - 365nm

Lightweight (90g), robust and handy, this 365nm UV torch with a lighting distance of about 2 to 3m is ideal for precision diagnostics in the building and industrial sectors.


ADVANTAGES
• Operates on a rechargeable Li-ion battery, with an autonomy of about 4 to 6 hours.
• Waterproof level: IPX4
• Includes UV lamp with a wavelength of 365 nm, protective glasses
+ charger and battery
•Compatible with DETECT + YELLOW, PURPLE,
and colorless DETECT + WHITE, UV MAX BLUE, UV MAX YELLOW
•Compatible with the DETECT + UV OIL range
•Compatible with fluorescein
•This lamp is lightweight and small enough to fit in a pocket


PRODUCT FEATURES

• Main materials: 6061 aluminum alloy
• Surface treatment: Green oxidation
• Color: Black
• Number of LEDs: 1PC
• Ultraviolet light wavelength: 365nm
• Battery: 1*18650 rechargeable li-battery
• Service time: 4-6h
• Voltage: 4.5V
• Lens material: Transparent ABS plastic
• Product size: L(133mm),
• Diameter (Head diameter: 30mm, tail diameter: 24mm)
• Weight: 90g
• Flashlight + Battery + Charger + box: 250g
• Waterproof level: IPX4
• Packaging: Kraft paper box


APPLICATION AREA

•Medical devices
•Sterilization
• Ink drying
• Metal crack and fissure detection
•Photocatalytic light source
•Inspection and counting equipment
•Anti-counterfeiting industry
•Medical measures and biostatistical safety tests

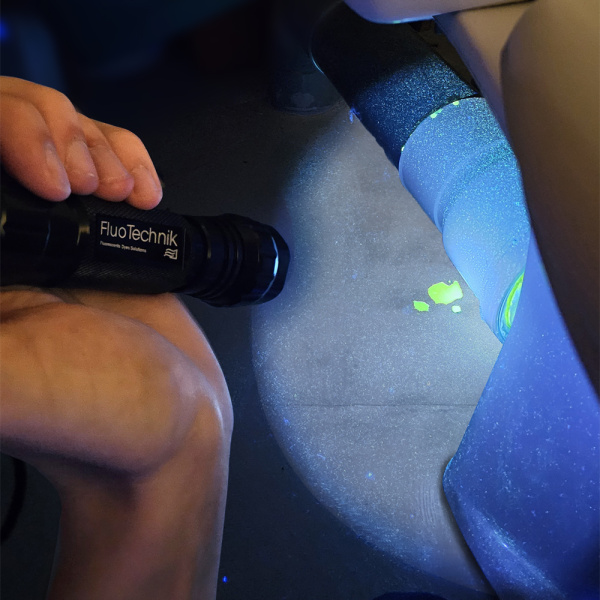

•Hydraulic leak detection
•Scorpion capture and banknote testing according to amber
•Animal urine

UV LAMP SOLD WITH 1 PAIR OF PROTECTIVE GLASSES
