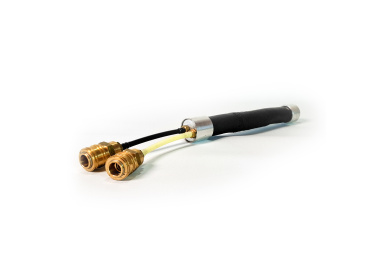

Inflatable Small Pipe Test Plugs bypass 35/70mm

Isolate, pressurise and test a network with a single tool
This professional inflatable pipe plug has been specially designed to simplify leak-tightness tests, leak detection and pipe diagnostics.

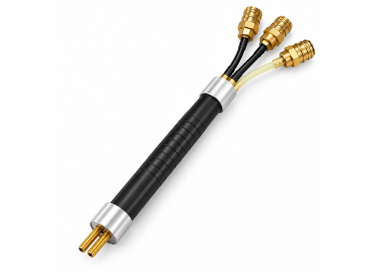

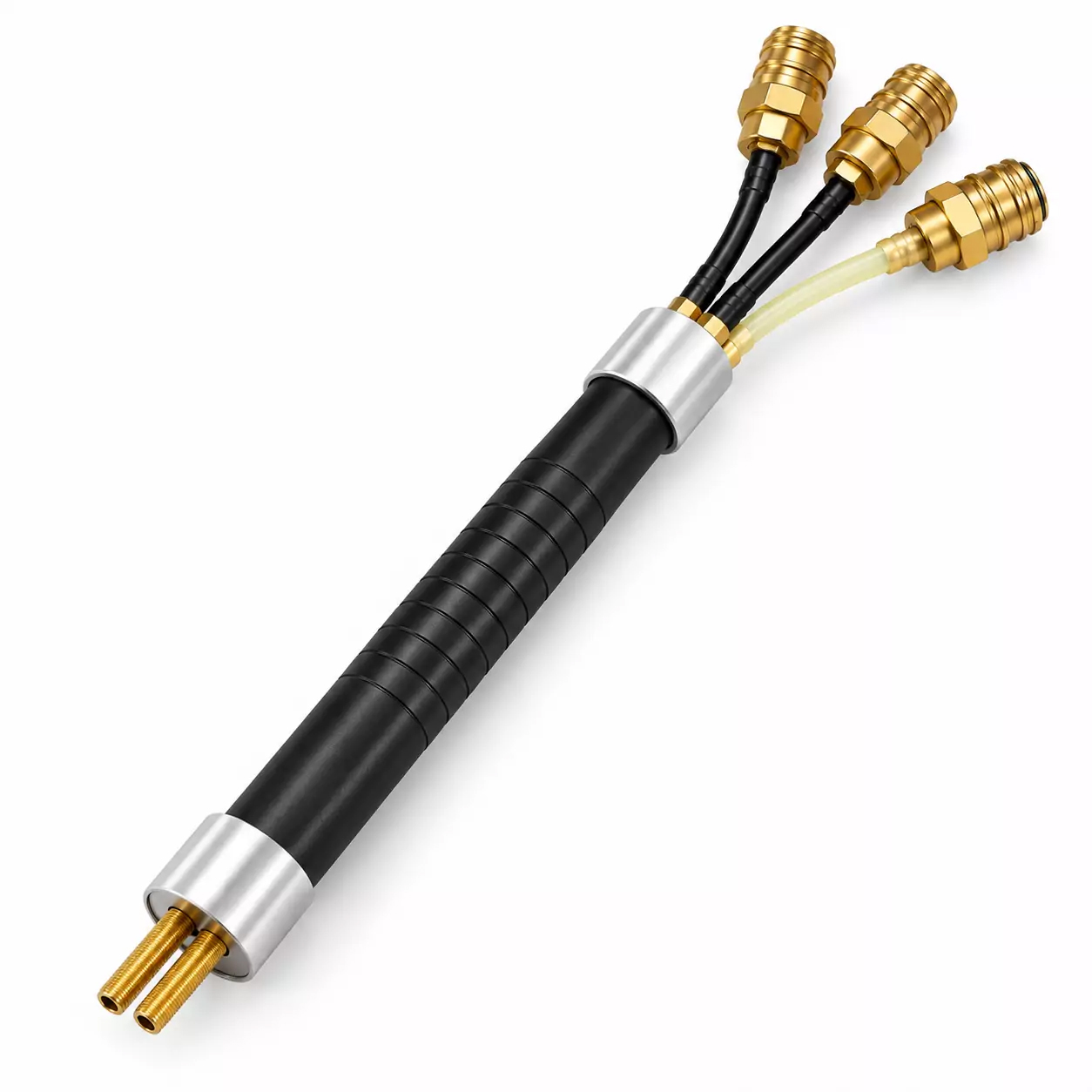

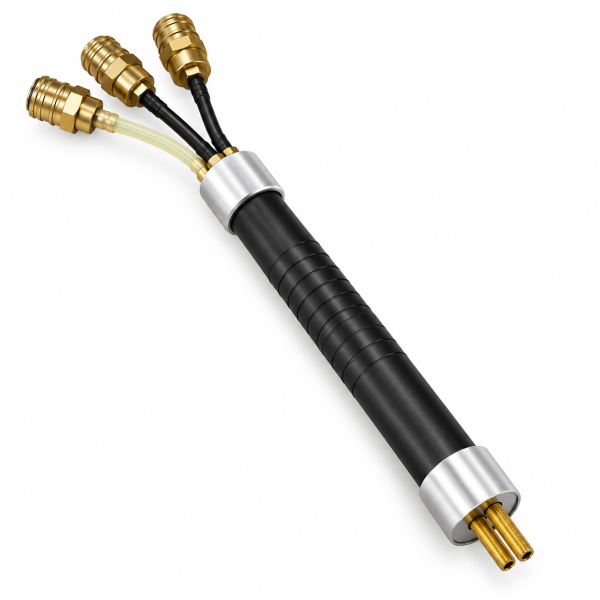

Its key feature is its design with three independent connections:
• a dedicated inlet for inflating the plug, ensuring that it remains securely in place and provides a tight seal inside the pipe;
• a first through bypass, allowing air or water to be injected into the isolated pipe;
• a second independent bypass, which can notably be connected to a pressure gauge to accurately measure and monitor the pressure of the circuit being tested.

A complete control station directly inside the pipe
Unlike a conventional inflatable pipe plug, which simply seals a pipe, this model makes it possible to create a complete test point directly inside the pipe. Once positioned in the pipe, the plug is inflated independently to provide the seal. The circuit can then be pressurised through one of the bypasses, while the second can simultaneously be connected to a pressure gauge, pressure sensor or other measuring equipment. The operator can therefore monitor pressure changes and identify any possible loss of tightness without having to add multiple fittings or intermediate assemblies.

Particularly suitable for swimming pool leak detection
This configuration is particularly useful for professionals carrying out leak detection on swimming pools and spas.

It can notably be used to isolate and individually test:
• return lines;
• skimmers;
• vacuum lines;
• main drains and hydraulic pipes;
• technical circuits;
• underground pipes between the pool and the plant room.

Once the pipe has been sealed, it can be pressurised with air or water, while a pressure gauge connected to the second bypass allows any pressure drop to be monitored immediately.
This makes diagnostics faster, cleaner and much easier to carry out.

A 3-in-1 solution designed for field use

SEAL
The inflatable plug provides a tight seal inside the pipe.

PRESSURISE
The through bypass allows the test fluid to be introduced into the section of the network to be checked.

MEASURE
The second bypass allows a pressure gauge or measuring device to be connected independently of the supply.
This separation of functions keeps the plug inflation pressure completely independent from the pressure applied to the network being tested.

Numerous professional applications
Beyond swimming pools, this system can be particularly useful for:
• leak detection on plumbing networks;
• pipe leak-tightness tests;
• pipe testing before recommissioning;
• irrigation networks;
• low-pressure hydraulic circuits;
• cooling systems;
• technical and industrial networks;
• maintenance and diagnostic operations on difficult-to-access pipes.

The second bypass can also be used with other measuring or testing instruments depending on the operator's testing procedure.

Advantages
• 3 independent connections on a single plug
• Independent plug inflation
• Direct pressurisation of the pipe
• Simultaneous connection of a pressure gauge
• Simplified leak diagnostics
• Compact and quick setup on site
• Reduced number of fittings and accessories required
• Particularly suitable for swimming pools and underground networks
• Suitable for various air or water testing procedures

More than an inflatable pipe plug: a complete diagnostic tool
Thanks to its integrated double bypass, this plug transforms simple pipe sealing into a complete testing system. A particularly practical solution for leak detection professionals who need to isolate, pressurise and measure at the same point, using a compact setup that is immediately ready for use in the field.

Important: the plug inflation pressure, maximum test pressure and compatibility with the fluid used must always comply with the technical specifications of the model and the conditions of the installation being tested.

TECHNICAL SPECIFICATIONS:
• Single pipe plug 35/70
• Operating range 35 mm to 70 mm
• Inflation pressure 2 bar
• Max. back pressure 0.5 bar - 1/8'' passage
• Length 210 mm
• Corrosion resistant
• Safe operation
• Weight 0.3 kg
