When a leak is suspected, the first concern is often the same: walls, floors or other structures may have to be opened to find its source. However, in many situations, it is possible to confirm and locate a leak before carrying out destructive work. To understand the overall diagnostic process, first discover how leak detection works. Non-destructive leak detection then brings together the methods used to identify a loss of tightness while minimising invasive work and retaining enough accuracy to plan an effective repair. This guide reviews the main methods, their operating principles, suitable applications and limitations.

What does “non-destructive leak detection” really mean?

The term “non-destructive” is sometimes misunderstood. It does not necessarily mean that no physical intervention will ever be required. The aim is to locate the leak before opening or breaking the surrounding structure, so that any repair can remain targeted and limited. The different leak detection and tracing solutions can be used to confirm a defect, narrow down the suspected area or identify its source more precisely.

A non-destructive approach aims to:

  • avoid unnecessary demolition;
  • limit the area that needs to be opened;
  • preserve existing structures;
  • plan a controlled and targeted intervention.

It is also important to distinguish between pinpointing the exact leak and narrowing down the suspected area. Some methods do not immediately identify a precise point, but they can reduce the search area sufficiently to guide a targeted repair.

When should a non-destructive approach be preferred?

Non-destructive leak detection methods are particularly relevant when:

  • pipes or networks are concealed or buried beneath walls, floors, slabs or roads;
  • opening the structure without first narrowing down the search area would create structural risks;
  • the installation is located in an occupied or operational building;
  • demolition costs or operational constraints are high;
  • the leak is intermittent, diffuse or invisible.

For buried networks, the first objective is generally to confirm the affected section and narrow down the search area before any excavation. Our guide explains in detail how to detect and locate a leak in an underground pipe using simple checks and professional non-destructive methods. In addition, pipeline tracing can help verify the route of a pipe, the movement of a fluid or possible connections between different sections of the system.

The typical process of non-destructive leak detection

Regardless of the method used, effective leak detection follows a structured process, usually organised into four main phases.

1/ Confirm the presence of a leak

Before attempting localisation, it is essential to confirm that a leak actually exists. This step relies on analysing symptoms (pressure loss, abnormal consumption, performance issues) and carrying out basic checks to remove uncertainty.

2/ Segment and isolate the system

Once a leak has been confirmed, the system is divided into sections that can be tested separately. Progressive isolation helps narrow down the suspected area, which is essential for successful non-destructive localisation. On suitable pipelines, inflatable pipe plugs can be used to temporarily isolate a section before carrying out pressure, smoke or tracer tests.

3/ Locate the leak using an appropriate method

At this stage, the most suitable detection method is selected according to the type of installation, accessibility, fluid involved and the level of accuracy required.

4/ Validate after repair

After the repair, validation is crucial to ensure that the leak has been fully resolved and that the system has regained its integrity.

Overview of the main non-destructive leak detection methods

Several families of non-destructive methods are available. Each relies on a specific principle and is suited to particular constraints.

Visual inspection and basic testing

Principle

Visual inspection consists of checking accessible parts of the system, such as joints, fittings and visible surfaces. It may be complemented by simple tests, such as monitoring levels or observing system behaviour over time.

When to use it

This approach is useful as a first step when parts of the installation are visible or easily accessible.

Limitations

It cannot locate concealed or buried leaks and depends heavily on the experience of the operator.

Pressure testing and leak-tightness checks

Principle

Pressure testing involves subjecting a system to controlled pressure and monitoring its behaviour. An abnormal pressure drop indicates a loss of tightness.

When to use it

This method is effective for confirming a leak in a closed or isolatable system. It is commonly used during plumbing and heating leak detection, provided that the test pressure remains compatible with the components and materials in the installation.

Limitations

It does not directly locate the leak and often needs to be combined with another method to identify the exact area.

Smoke testing

Principle

Visible smoke is introduced at low pressure into a previously isolated system. When it emerges through an unexpected crack, defective joint or opening, it reveals an abnormal air path. Smoke generators for leak detection can be used on suitable ducts, drainage systems, pipes and ventilation networks.

When to use it

These methods are well suited to ducts, pipes and networks where airflow can carry the smoke to the leak point.

Limitations

They require sufficient system tightness to guide the flow and are not always suitable for liquid-filled networks.

Fluorescent and coloured tracer testing

Principle

A tracer compatible with the fluid and the installation is introduced into the circuit to follow its movement and reveal an abnormal exit point. In water networks, UV fluorescent coloured tracers can be observed directly or under ultraviolet light, depending on the product and the conditions of the test.

Where visible colouring of the fluid or surrounding surfaces must be avoided, clear UV fluorescent tracers may be more suitable. Their presence is revealed using an appropriate UV lamp rather than by visible colour alone.

Reliable results depend on selecting the correct tracer, applying an appropriate dosage, allowing sufficient circulation time and using suitable observation equipment. Complete water tracing kits bring together compatible tracers and equipment for common water leak detection applications.

When to use it

Tracer methods are especially useful when the leak cannot be observed directly, for example behind a covering, beneath the ground or in a poorly accessible section of the system. They can form part of the process used to detect an invisible leak and progressively narrow down its location.

Limitations

They require controlled conditions and careful implementation to ensure reliable results.

Acoustic detection methods

Principle

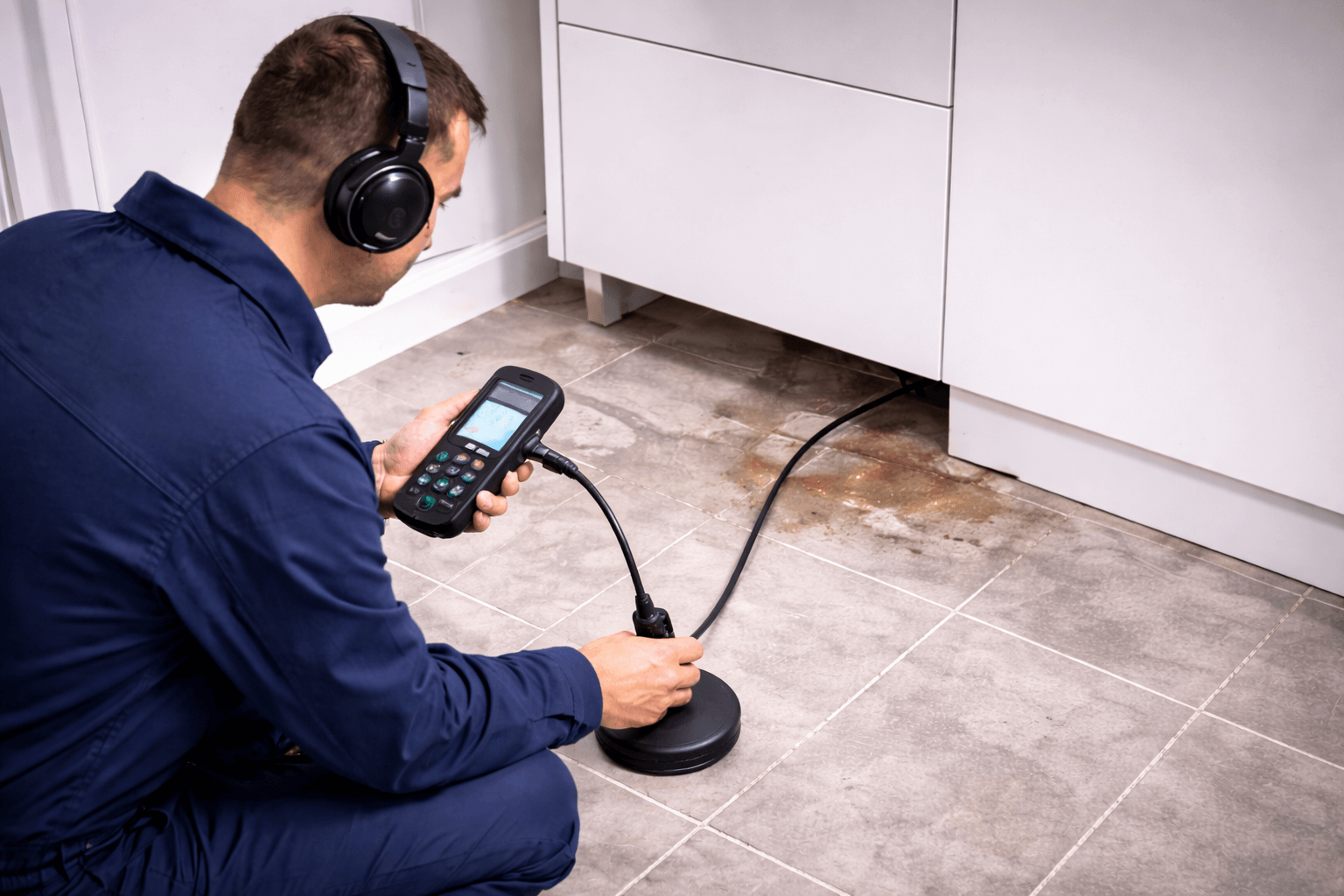

Acoustic methods detect the noise or vibrations generated by a leak under pressure.

When to use it

They are commonly used on pressurised and buried networks.

Limitations

Results may be affected by background noise, material type and environmental conditions.

Tracer gas leak detection

Principle

A gas is injected into the system and detected at the point where it escapes.

When to use it

This approach is suitable for specific installations requiring very high sensitivity.

Limitations

It involves safety constraints and must be carried out under controlled conditions.

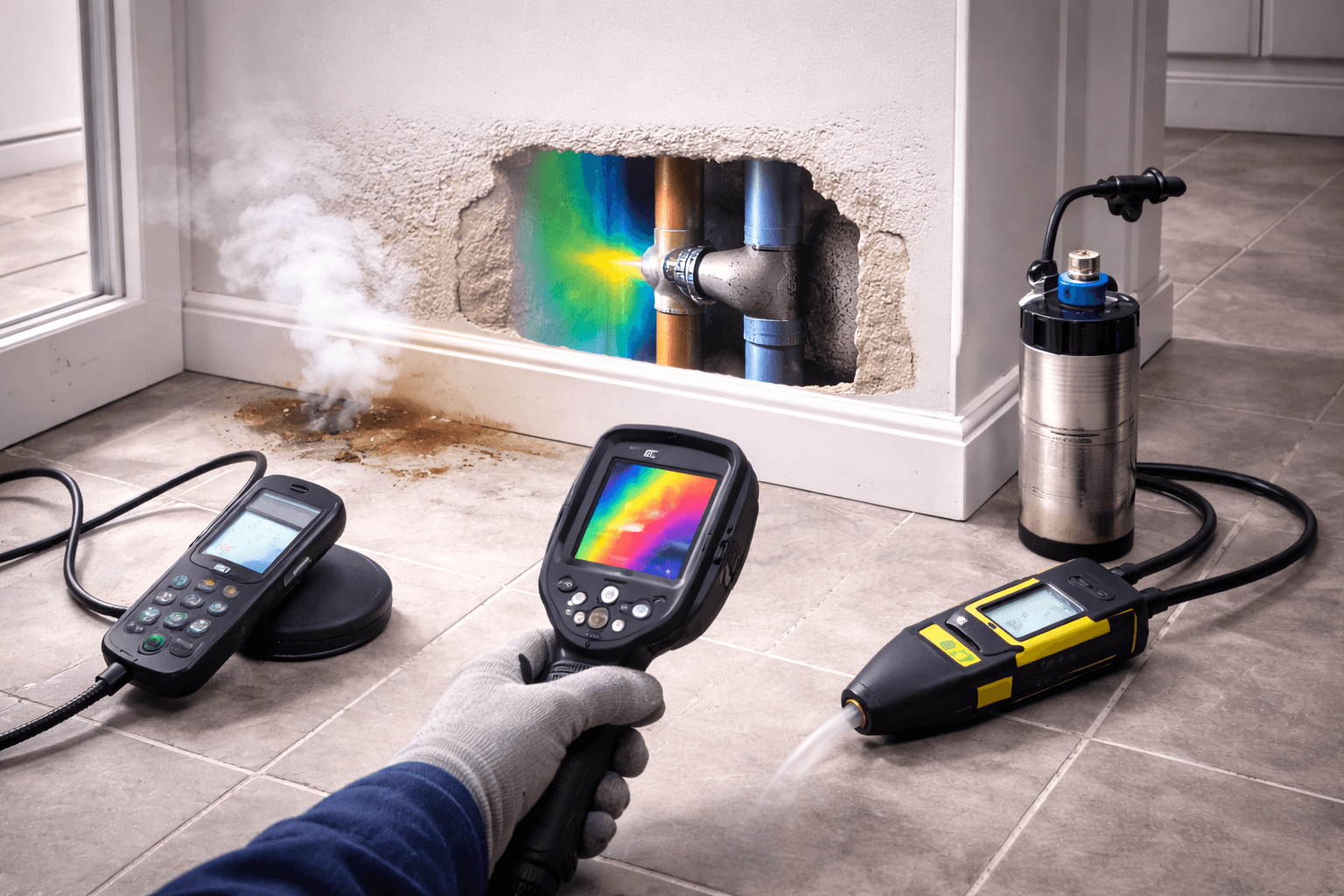

Thermography and indirect measurement methods

Principle

These methods analyse temperature variations or indirect indicators to detect anomalies.

When to use it

They can complement other approaches in specific contexts.

Limitations

They are not always sufficient as a standalone localisation method.

How to choose the right method for your situation

Choosing a non-destructive leak detection method depends on several key criteria.

According to the type of installation

A swimming pool, a buried pipe and a vehicle air-conditioning circuit involve different fluids, pressures and accessibility constraints. For a pool, level monitoring and tracer testing can help determine whether the pool is leaking. For a vehicle, the diagnostic method must be compatible with the refrigerant and lubricant, as explained in our guide to detecting a car air-conditioning leak.

For refrigeration and cooling circuits, dedicated air-conditioning leak detection solutions make it possible to select a tracer and detection method compatible with the refrigerant and compressor lubricant.

On a flat roof or terrace, the investigation must take account of waterproofing layers, joints, drainage outlets and upstands. Dedicated roof and terrace waterproofing tests can help check suspected areas without opening the entire surface.

According to accessibility

The more difficult the access, the more relevant non-destructive methods become.

According to urgency and required accuracy

Confirming a suspicion does not require the same tools as locating a critical leak precisely.

According to fluid type and safety constraints

The nature of the fluid and applicable safety rules directly influence method selection.

Common mistakes that lead to unnecessary damage

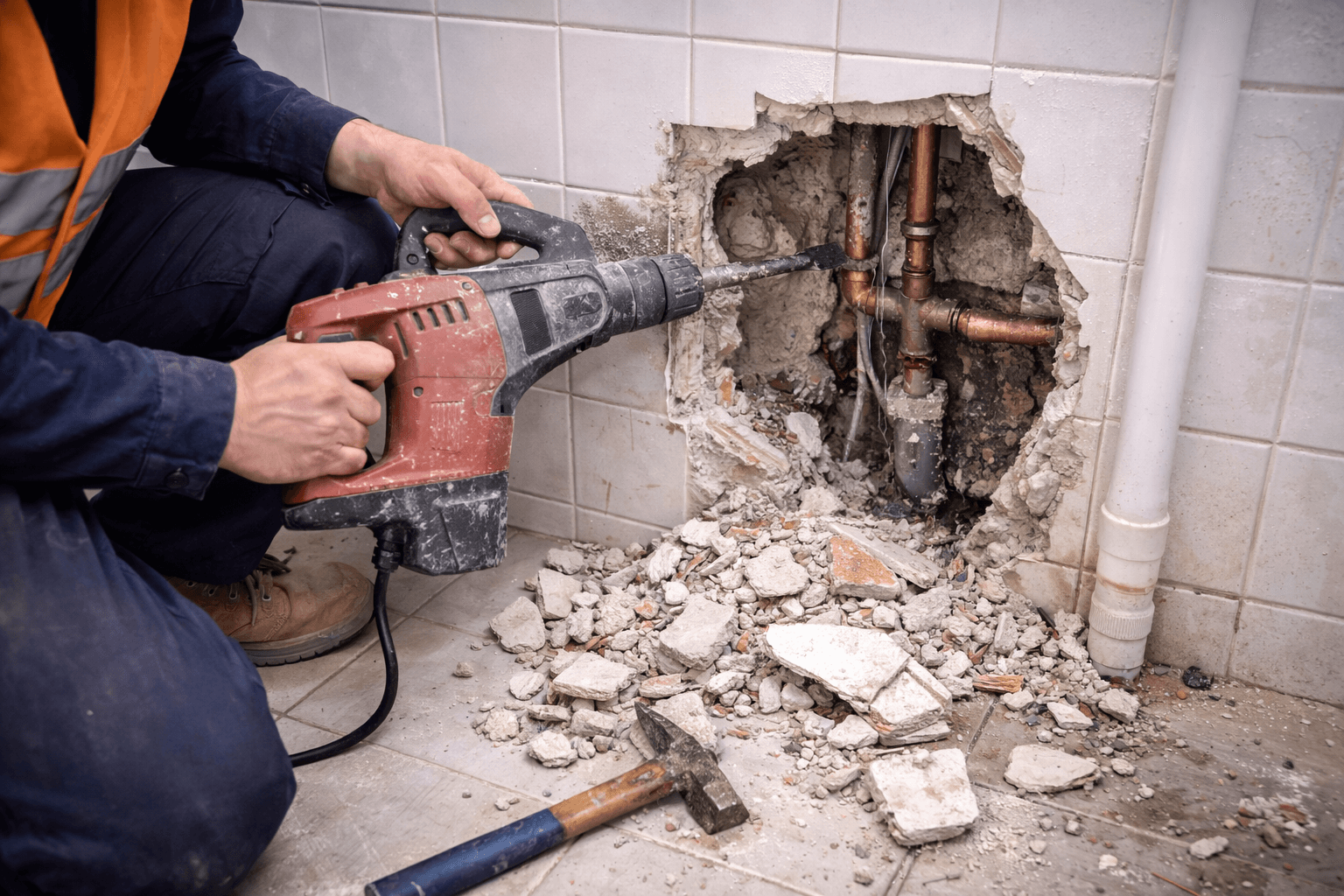

Several recurring mistakes often result in avoidable destruction:

  • Neglecting system history,
  • Failing to segment the installation,
  • Using an inappropriate method,
  • Resorting too early to destructive intervention.

A methodical approach helps avoid these pitfalls.

When non-destructive methods reach their limits

Non-destructive detection is not always sufficient. In some cases, a targeted invasive intervention becomes necessary to access the defective area. The key objective then remains to limit damage, using the information gathered during the detection phase.

Frequently asked questions about non-destructive leak detection

Yes, in many cases. Pressure testing, acoustic detection, tracer gas and fluorescent tracers can significantly narrow down the search area before any excavation. The result nevertheless depends on the type of pipe, the fluid, burial depth and surrounding materials.

Yes, but intermittent leaks are more difficult to diagnose. The conditions in which the leak occurs may need to be reproduced, and repeated tests or longer monitoring may be required.

Accuracy varies according to the method, the system configuration and the test conditions. Some methods only narrow down a suspected area, while combining several techniques can provide a much more precise location.

A repair should be validated by repeating the original test, such as a pressure check, level monitoring, fluid circulation test or tracer inspection. The appropriate method depends on the system and the technique initially used to confirm the leak.

The investigation may take less than an hour or several hours depending on the size of the system, accessibility, the ability to isolate individual sections and the need to combine several methods.

System plans, access to valves and fittings, the ability to isolate individual sections, incident history and information about the pipe materials all make the investigation easier.

Conclusion

Non-destructive methods make it possible to confirm a defect and progressively narrow down the search area before any structure is opened. Depending on the installation, pressure testing, network isolation, smoke, fluorescent tracers, acoustic detection or indirect measurements may be combined. Fluotechnik’s leak detection and tracing solutions should always be selected according to the fluid, materials, accessibility and level of accuracy required. The objective is not necessarily to avoid every opening, but to make the final intervention as limited, safe and targeted as possible.
